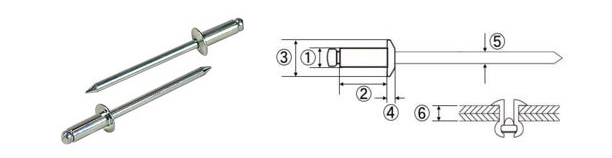

尺寸規格：
| 編號 | ① | ② | ③ | ④ | ⑤ | ⑥ | 抗拉強度 | 抗剪強度 | 適用材料厚度 |
| NS32 | φ2.4mm | 5.5mm | φ4.8mm | 0.8mm | φ1.5mm | 1.0～3.2mm | 0.85 | 0.7 | 1.0～3.2mm |
| NS34 | φ2.4mm | 8.7mm | φ4.8mm | 0.8mm | φ1.5mm | 3.2～6.4mm | 0.85 | 0.7 | 3.2～6.4mm |
| NS41 | φ3.2mm | 4.8mm | φ6.4mm | 1.1mm | φ1.9mm | 1.0～1.6mm | 1.7 | 1.3 | 1.0～1.6mm |
| NS42 | φ3.2mm | 6.5mm | φ6.4mm | 1.1mm | φ1.9mm | 1.0～3.2mm | 1.7 | 1.3 | 1.0～3.2mm |
| NS43 | φ3.2mm | 8.0mm | φ6.4mm | 1.1mm | φ1.9mm | 1.6～4.8mm | 1.7 | 1.3 | 1.6～4.8mm |
| NS44 | φ3.2mm | 9.5mm | φ6.4mm | 1.1mm | φ1.9mm | 3.2～6.4mm | 1.7 | 1.3 | 3.2～6.4mm |
| NS45 | φ3.2mm | 11.2mm | φ6.4mm | 1.1mm | φ1.9mm | 4.8～8.0mm | 1.7 | 1.3 | 4.8～8.0mm |
| NS46 | φ3.2mm | 12.7mm | φ6.4mm | 1.1mm | φ1.9mm | 6.4～9.5mm | 1.7 | 1.3 | 6.4～9.5mm |
| NS48 | φ3.2mm | 15.9mm | φ6.4mm | 1.1mm | φ1.9mm | 9.5～12.7mm | 1.7 | 1.3 | 9.5～12.7mm |
| NS52 | φ4.0mm | 7.0mm | φ8.0mm | 1.3mm | φ2.4mm | 1.2～3.2mm | 2.7 | 2 | 1.2～3.2mm |
| NS53 | φ4.0mm | 8.9mm | φ8.0mm | 1.3mm | φ2.4mm | 1.6～4.8mm | 2.7 | 2 | 1.6～4.8mm |
| NS54 | φ4.0mm | 10.5mm | φ8.0mm | 1.3mm | φ2.4mm | 3.2～6.4mm | 2.7 | 2 | 3.2～6.4mm |
| NS55 | φ4.0mm | 11.8mm | φ8.0mm | 1.3mm | φ2.4mm | 4.8～8.0mm | 2.7 | 2 | 4.8～8.0mm |
| NS56 | φ4.0mm | 13.3mm | φ8.0mm | 1.3mm | φ2.4mm | 6.4～9.5mm | 2.7 | 2 | 6.4～9.5mm |
| NS58 | φ4.0mm | 16.5mm | φ8.0mm | 1.3mm | φ2.4mm | 9.5～12.7mm | 2.7 | 2 | 9.5～12.7mm |
| NS62 | φ4.8mm | 7.6mm | φ9.6mm | 1.8mm | φ2.9mm | 1.6～3.2mm | 4 | 3 | 1.6～3.2mm |
| NS63 | φ4.8mm | 9.2mm | φ9.6mm | 1.8mm | φ2.9mm | 1.6～4.8mm | 4 | 3 | 1.6～4.8mm |
| NS64 | φ4.8mm | 10.8mm | φ9.6mm | 1.8mm | φ2.9mm | 3.2～6.4mm | 4 | 3 | 3.2～6.4mm |
| NS65 | φ4.8mm | 12.4mm | φ9.6mm | 1.8mm | φ2.9mm | 4.8～8.0mm | 4 | 3 | 4.8～8.0mm |
| NS66 | φ4.8mm | 14.0mm | φ9.6mm | 1.8mm | φ2.9mm | 6.4～9.5mm | 4 | 3 | 6.4～9.5mm |
| NS68 | φ4.8mm | 17.2mm | φ9.6mm | 1.8mm | φ2.9mm | 9.5～12.7mm | 4 | 3 | 9.5～12.7mm |
| NS610 | φ4.8mm | 20.4mm | φ9.6mm | 1.8mm | φ2.9mm | 12.7～15.9mm | 4 | 3 | 12.7～15.9mm |
| NS612 | φ4.8mm | 23.6mm | φ9.6mm | 1.8mm | φ2.9mm | 15.9～19.1mm | 4 | 3 | 15.9～19.1mm |
| NS84 | φ6.4mm | 12.4mm | φ12.8mm | 2.4mm | φ3.8mm | 3.2～6.4mm | 7.2 | 5.2 | 3.2～6.4mm |
| NS86 | φ6.4mm | 15.6mm | φ12.8mm | 2.4mm | φ3.8mm | 6.4～9.5mm | 7.2 | 5.2 | 6.4～9.5mm |
| NS88 | φ6.4mm | 18.9mm | φ12.8mm | 2.4mm | φ3.8mm | 9.5～12.7mm | 7.2 | 5.2 | 9.5～12.7mm |
| NS810 | φ6.4mm | 22.1mm | φ12.8mm | 2.4mm | φ3.8mm | 12.7～15.9mm | 7.2 | 5.2 | 12.7～15.9mm |
| NS812 | φ6.4mm | 25.4mm | φ12.8mm | 2.4mm | φ3.8mm | 15.9～19.1mm | 7.2 | 5.2 | 15.9～19.1mm |
| NS814 | φ6.4mm | 28.6mm | φ12.8mm | 2.4mm | φ3.8mm | 19.1～22.3mm | 7.2 | 5.2 | 19.1～22.3mm |
應用領域：
1.飛機、輪船、火車、汽車等。
2.農業儀器、家具、標牌和廣告展示。
3.鈑金加工、建筑、腰帶、家居裝飾等。
