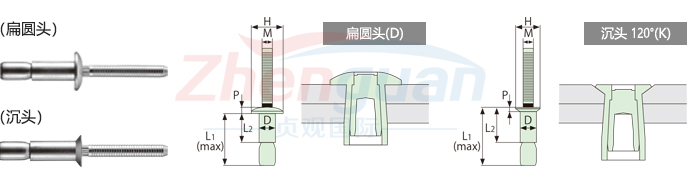

尺寸規格：
| 鉚釘直徑 | 孔徑 | Rivet No.■ | 板厚 | L(mm) | H(mm) | P1 (mm) |
P2 (mm) |
M (mm) |
參考(N) | ||
| 抗剪力 | 抗拉力 | 夾緊力 | |||||||||
| 4.8 ＋0.07 −0.05 |
4.9 〜 5.1 | SD-670-UG | 1.6 - 7.0 | 19.1 | 10.1 | 9.5 ±0.3 | 2.1 ±0.15 | 3max | 6500 | 5330 | 660 |
| SD-6110-UG | 5.5 - 11.1 | 22.5 | 14.1 | ||||||||
| SD-6110-UGX | 1.6 - 11.1 | 26.6 | 14.1 | ||||||||
| 6.4 ＋0.17 −0.05 |
6.6 〜 7.0 | SD-895-UG | 2.0 - 9.5 | 25.8 | 13.8 | 13 ±0.4 | 2.8 ±0.2 | 4max | 11800 | 10000 | 1330 |
| SD-8160-UG | 9.0 - 16.0 | 31.3 | 20.3 | ||||||||
| SD-8160-UGX | 2.0 - 16.0 | 36.3 | 20.3 | ||||||||
| 4.8 ＋0.07 −0.05 |
4.9 〜 5.1 | SK-685-UG | 3.2 - 8.5 | 20.9 | 11.9 | 8.4 ±0.4 | 1.7 ＋0.1 −0.25 |
3max | 6500 | 5330 | 660 |
| SK-6125-UG | 7.5 - 12.5 | 24.6 | 16.2 | ||||||||
| 6.4 ＋0.17 −0.05 |
6.6 〜 7.0 | SK-8120-UG | 4.0 - 12.0 | 28.6 | 16.6 | 10 ±0.5 | 2.0 ＋0.1 −0.25 |
4max | 11800 | 10000 | 1330 |
| SK-8185-UG | 10.5 - 18.5 | 34.1 | 23.1 | ||||||||
| 4.8 ＋0.07 −0.05 |
4.9 〜 5.1 | AD-670-UG | 1.6 - 7.0 | 19.1 | 10.1 | 9.5 ±0.3 | 2.1 ±0.15 | 3max | 3000 | 2220 | 220 |
| AD-6110-UG | 5.5 - 11.1 | 22.5 | 14.1 | ||||||||
| AD-6110-UGX | 1.6 - 11.1 | 26.6 | 14.1 | ||||||||
| 6.4 ＋0.17 −0.05 |
AD-895-UG | 2.0 - 9.5 | 25.8 | 13.8 | 13 ±0.4 | 2.8 ±0.2 | 4max | 5780 | 4000 | 440 | |
| AD-8160-UG | 9.0 - 16.0 | 31.3 | 20.3 | ||||||||
| 6.6 〜 7.0 | AD-8160-UGX | 2.0 - 16.0 | 36.3 | 20.3 | |||||||
| 4.8 ＋0.07 −0.05 |
4.9 〜 5.1 | AK-685-UG | 3.2 - 8.5 | 20.9 | 11.9 | 8.4 ±0.4 | 1.7 ＋0.1 −0.25 |
3max | 3000 | 2220 | 220 |
| AK-6125-UG | 7.5 - 12.5 | 24.6 | 16.2 | ||||||||
| 6.4 ＋0.17 −0.05 |
6.6 〜 7.0 | AK-8120-UG | 4.0 - 12.0 | 28.6 | 16.6 | 10 ±0.5 | 2.0 ＋0.1 −0.25 |
4max | 5780 | 4000 | 440 |
| AK-8185-UG | 10.5 - 18.5 | 34.1 | 23.1 | ||||||||
| 4.8 ＋0.07 −0.05 |
SSD-670-UG | 1.6 - 7.0 | 19.1 | 10.1 | 9.5 ±0.3 | 2.1 ±0.15 | 3max | 5780 | 4220 | 440 | |
| 4.9 〜 5.1 | SSD-6110-UG | 5.5 - 11.1 | 22.5 | 14.1 | |||||||
| SSD-6110-UGX | 1.6 - 11.1 | 26.6 | 14.1 | ||||||||
| 6.4 ＋0.17 −0.05 |
6.6 〜 7.0 | SSD-895-UG | 2.0 - 9.5 | 25.8 | 13.8 | 13 ±0.4 | 2.8 ±0.2 | 4max | 10450 | 8000 | 880 |
| SSD-8160-UG | 9.0 - 16.0 | 31.3 | 20.3 | ||||||||
| SSD-8160-UGX | 2.0 - 16.0 | 36.3 | 20.3 | ||||||||
| 4.8 ＋0.07 −0.05 |
4.9 〜 5.1 | SSK-685-UG | 3.2 - 8.5 | 20.9 | 11.9 | 8.4 ±0.4 | 1.7 ＋0.1 −0.25 |
3max | 5780 | 4220 | 440 |
| SSK-6125-UG | 7.5 - 12.5 | 24.6 | 16.2 | ||||||||
| 6.4 ＋0.17 −0.05 |
6.6 〜 7.0 | SSK-8120-UG | 4.0 - 12.0 | 28.6 | 16.6 | 10 ±0.5 | 2.0 ＋0.1 −0.25 |
4max | 10450 | 8000 | 880 |
| SSK-8185-UG | 10.5 - 18.5 | 34.1 | 23.1 | ||||||||
